CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker

$CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker Manufactures$ $CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker Manufactures$ $CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker Manufactures$ $CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker Manufactures$

Brand Name : CVR

Model Number : W-208 & W-18/W-208P & W-18P

Certification : CE

Place of Origin : Guang Zhou , China

MOQ : 2 boxes

Price : $100 to $10000

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 5000 boxes each month

Delivery Time : 10 to 15 days after receive payment

Packaging Details : carton box package or flight case package

Model : W-208 & W-18/W-208P & W-18P

Type : Line array system

power : LF400W(RMS)800W(PEAK) HF 90W(RMS)180W(PEAK)

Frequency Response : 70Hz-20KHz±3dB 40Hz-500Hz±3dB(W-18/W-18P)

Size : 2×8"(210mm) neodymium woofer 65mm(2.5in)coil 1×18"(460mm) woofers

Amplifier type : Switching power amp, class D circuit

Contact Now

CVR Dual 8 Inch Stage Light Sound Passive Line Array Speaker Power Voice System Speakers

DESCRIPTION and APPLICATION

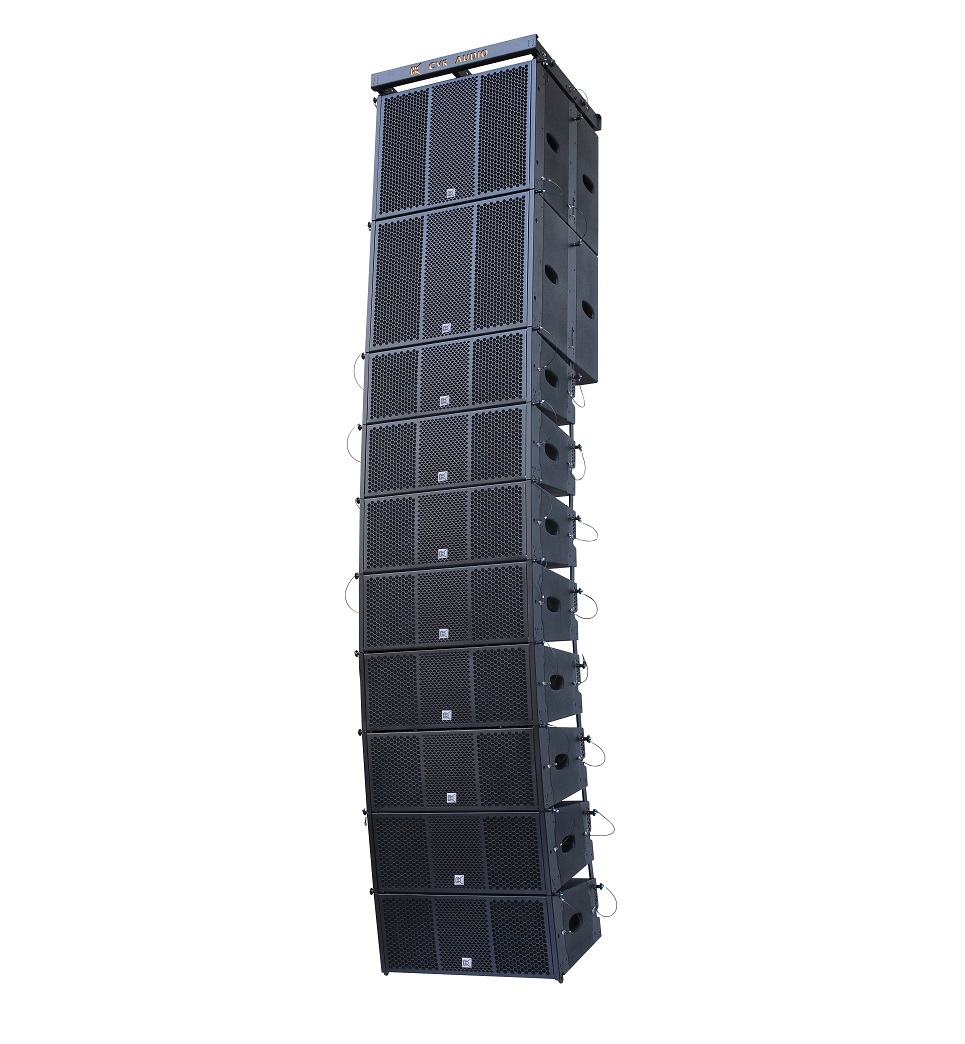

W-208&W-208P is a line array system which is made of two 8 inch neodymium woofers, one 2.5 inch titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required,a W-208&W-208P will integrate seamlessly with W-18&W-18P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-208&W-208P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-18/W-18P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-208&W-208P, W-18&W-18P is a sub-bass enclosure which must be flown with W-208&W-208P. So its physical dimensions are identical to the W-208&W-208P and it is equipped with the same proprietary rigging system. It features with one 18 inch woofers with magnet structure and suspensions engineered for maximum linear excursion.

Model	W-208 & W-18/W-208P & W-18P(Active)
Type	Line array system
	Line array sub-bass system(W-18/W-18P)
Frequency Response	70Hz-20KHz±3dB
	40Hz-500Hz±3dB(W-18/W-18P)
Power handling	LF400W(RMS)800W(PEAK)
	HF 90W(RMS)180W(PEAK)
	600W(RMS)1200W(PEAK)(W-18/W-18P)
Power amp	600W/8ohm (W-208P)900W/8ohm(W-18P)
Amplifier type	Switching power amp, class D circuit
Other functions	Built-in crossover(W-208P)
Sensitivity	LF 97dB(1W-1M)
	HF 108dB(1W-1M)
	106dB(1W-1M)(W-18/W-18P)
Max-S.P.L	LF 122dB(PEAK/1M)
	HF 128dB(PEAK/1M)
	130dB(PEAK/1M)(W-18/W-18P)
LF section	2×8"(210mm) neodymium woofer
	65mm(2.5in)coil
	1×18"(460mm) woofers
	100mm(4in)coil(W-18/W-18P)
Nominal impedance	16 ohm
	8 ohm(W-18/W-18P)
HF section	1×2.5" neodymium compression driver
	with 65mm titanium diaphragm
Nominal impedance	16 ohm
Output section	2-channel
Dispersion pattern	110°H×10°V
Finish	Water-proof,wear-resistant textured
	black paint
Array design	Arrays of less than 3×W-208 will
	provide poor dispersion control and
	are neither recommended nor supported
Speaker cables	LF 1(+)1(-) HF 2(+)2(-)
	1(+)1(-) (W-18/W-18P)
Rigging system	Please refer to the W-208 user's
	manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	LF 70Hz-2KHz
	HF 2KHz-20KHz 35Hz-120Hz(W-18/W-18P)
Dimensions	640 x 261 x 380mm(W x H x D)(W-208/W-208P)
	640 x 502 x 600mm(W x H x D)(W-18/W-18P)
Package dimensions	700 x 320 x 440mm/0.10cbm(W-208/W-208P)
	700 x 570 x 670mm/0.27cbm(W-18/W-18P)
Enclosure	Birch plywood
Net weight	23kg(W-208)26kg(W-208P)42kg(W-18)45kg(W-18P)
Gross weight	26kg(W-208)29kg(W-208P)45kg(W-18)48kg(W-18P)

About us :

Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer specialized in producing professional audio equipment with an own brand “CVR ” since 2005. Our 5,000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.

Project case:

$CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker$

CVR exclusive area :

United States, Canada, Australia, Spain, Nigeria, Ghana, Japan, Korea, Cambodia, Fiji, Uganda, Malaysia, Peru.
USA Address:2012 TRANQUILITY LANE,LEAGUE CITY, TX 77573,USA
Japan Address: 329 AOKI YUASA-TOWN ARIDA-GUN, WAKAYAMA-prefecture
Korea Address:408,Onnuriplaza,128-2,Goean-dong,Sosa-gu,Bucheon-si,Kyungki
Ghana Address:No.9,5th Circular road,Labone Accra
Uganda Address: Plot 1175A Mukalazi Road, Bukoto Kampala Uganda. P.O BOX 23217Kampala
Nigeria Address: T. I. REWARD BLOCK, ELECTRONICS MARKET ONITSHA, ANAMBRA STATE.

CVR PRO AUDIO aims to :

Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at www.cvr-audio.com

Quick Details:

Place of Origin : Guangzhou , China
Brand name : CVR
Model Number: : W-208 & W-18/W-208P & W-18P
System: Active line array
Power rating : 400---800watts
Color: Black
Type: Professional Loudspeaker
Service Type: OEM or ODM
Warranty : one year

$CVR Dual 8 Inch Passive and Self Powered Sound \Church big Line Array \Conference Room Speaker$
