Power Line Array Speakers Compact Audio System Concert Sound Equipment

Brand Name : CVR

Model Number : W-9

Certification : CE,RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : USD 100-10000 PIECES

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Pieces Per Month

Delivery Time : 3-10 Days Upon Receipt Deposit

Packaging Details : Good Quality Carton Box Or Flightcases

cabinet material : birch plywood

details : dual 12 inch line array

enclosure : 2*12''LF,2*8''MF,2*3''HF

fuction : concert line array,big stadium,outdoor show

color : black

driver unit : all good quality neodynium

Contact Now

Power Line Array Speakers Compact Audio System Concert Sound Equipment

Description And Application

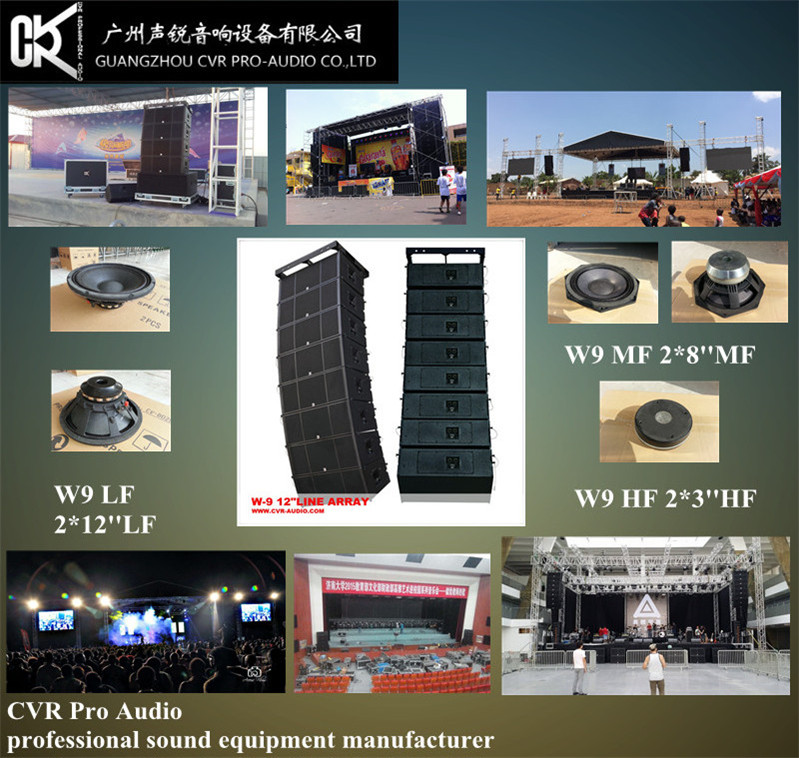

W9 line array system which is made of two 12''neodymium woofers, two high sensitivity 8'' midrange speaker units, two 3'' titanium neodymium compression drivers, the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front.

W9 speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9 line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.

Model

W-9

Type

Line array system

Frequency Response

52Hz-20KHz±3dB

Power handling

LF 2×600W(RMS)2×1200W(PEAK)

MF 500W(RMS)1000W(PEAK)

HF 200W(RMS)400W(PEAK)

Sensitivity

LF 104dB(1W@1M)

MF 108dB(1W@1M)

HF 111dB(1W@1M)

MaxS.P.L

LF 135dB(PEAK/1M)

MF 135dB(PEAK/1M)

HF 134dB(PEAK/1M)

LF section

2×12" (310mm)neodymium woofer

75mm(3in) coil

Nominal impedance

8 ohm

MF section

2×8" (210mm)neodymium MF

65mm(2.5in)coil

Nominal impedance

8 ohm

HF section

2×3"neodymium compression driver

with 75mm titanium diaphragm

Nominal impedance

16 ohm

Output section

3-channel

Dispersion pattern

110°H×7.5°V

Finish

Water-proof,wear-resistant textured black paint

Array design

Arrays of less than 3×W-9 will

provide poor dispersion control and

are neither recommended nor supported

Speaker cables

LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)

Rigging system

Please refer to the W-9 user

manual before any operation

Input connectors

2×Neutrik NL8

Recommend crossover

LF 60Hz-250Hz

MF 250Hz-1.8kHz

HF 1.8kHz-20KHz

Dimensions

932×360×530mm(W×H×D)

Package dimensions

1000×430×600mm/0.26cbm

Enclosure

Birch Plywood

Net weight

55kg

Gross weight

59kg

CVR PRO AUDIO aims to:

  • Become your most trusted and reliable manufactory
  • Provide high quality pro sound equipment at realistic prices
  • Provide outstanding designs together with delicate finished
  • Provide meticulous and considerate service for clients
  • See more at: www.cvr-audio.com

Competitive Advantage:

  • High quality drivers, high power handling capability, good sound quality, flyware easy for operation,
  • beautiful mesh grille design,highest standards of workmanship and quality control.
  • A good solution for all sizes of indoor/outdoor live event,and indoors applications like disco,
  • night club, conference,school auditorium, and places of worship;
  • To avoid damage and scratch during transport,according to customers’requirement,we can put the items in extra cost flight cases.Power Line Array Speakers Compact Audio System Concert Sound Equipment
